Matrix

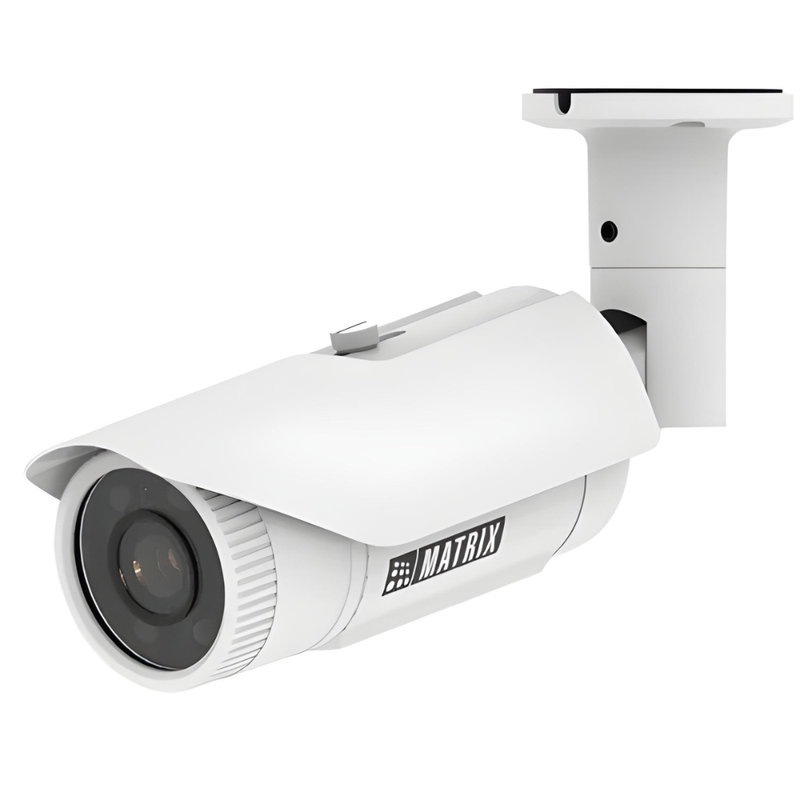

Matrix SATATYA 8MP IR Bullet Camera, Fixed lens- Project Series 3.6mm
SKU: SATATYA CIBR80FL36CWP
Select required product from options below:
Lens: 3.6mm
About Product
The Matrix SATATYA CIBR80 Series 8MP IR Bullet Cameras with audio support are designed for enterprise-grade security, offering crystal-clear imaging with Sony STARVIS back-illuminated CMOS sensors and 120 dB True WDR for balanced visibility in challenging light conditions. Supporting H.265/H.264/MJPEG compression, they ensure optimized storage efficiency, while IR night vision up to 50 meters and 512 GB SD card edge recording provide reliable 24/7 surveillance. Available in 2.8mm (HFOV 106.9°) for wide coverage, 3.6mm (HFOV 84°) for balanced monitoring, and 6.0mm (HFOV 51.26°) for focused views, these cameras combine high resolution, advanced performance, and a compact design (301.6 × 84 × 92.5 mm) to suit diverse security needs.
Key Specs
- Lux: Color - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
- IR Range: Up to 50m
- Lens type: 3.6mm Fixed Lens
- Resolution: 8 MP (3840x2160)
- Camera Type: IP Bullet
- Alarm Trigger: Yes
- Max Resolution: 3840x2160
- Video Analytics: Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
- Image Enhancement: Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVSForensics/ Smart IR
- Wide Dynamic Range: True WDR (120dB)
Or
Product Specifications
Camera
Camera Type
IP Bullet
Resolution
8 MP (3840x2160)
Image Sensor
1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
Signal System
-
Lux
Color - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Shutter time
1/15s -1/100000s
Day & Night
Yes
Wide Dynamic Range
True WDR (120dB)
Angle Adjustment
Pan - 0° to 360° Tilt - 0° to 90° Rotate - 0° to 360°
Lens
Lens type
3.6mm Fixed Lens
Lens Mount
-
Aperture
F 1.6/ F2.0
FOV
HFOV - 84° VFOV - 47.8° DFOV - 96.4°
Illuminator
IR LED
-
IR Range
Up to 50m
Wavelength
850nm
Compresssion Standard
Video compression
H.265, H.264, MJPEG
Video Bit Rate
128kbps-16Mbps
Audio compression
G.726 and G.711μ
Audio Bit Rate
-
Max Resolution
3840x2160
Main Stream
H.265, H.264 with Max Res 4k@30Fps
Sub Stream
H.265, H.264 with Max Res D1@30Fps
Image Setting
-
Image Enhancement
Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVSForensics/ Smart IR
OSD
-
Privacy Mask
3
Smart Defog
-
Feature
Alarm Trigger
Yes
Video Analytics
Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
Network
Protocol
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DynDNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, SNMP, FTP, TLS/SSL, SFTP, ICMP, IGMPv2 & v3, ARP, 802.1x, IPv4, IPv6, QoS Layer 3, DSCP, CIFS, SSH, UPnP, Bonjour
System Compatibility
ONVIF (S, G and T)
Remote Connection
-
Client
-
Web Version
Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Interface
Communication Interface
10Base-T/100BaseTX Ethernet (RJ-45)
Audio I/O
Input-1x(3.5mm stereo female audio jack)/ Output- 1x(3.5mm stereo female audio jack)
General
Web Client Language
English
Operating Conditions
-
Power Supply
Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Power Consumption
Maximum 9W
Protection
Web login Password protection, Unused debug interface protection
Dimensions
158mm x 134mm
Weight
840g
